Precise and reliable,
for a lifetime.
In the timber industry, every centimetre counts! Even small inaccuracies can add up to a significant reduction in profitability. Our Signumat sliding caliper is an intelligent, state-of-the-art precision tool. Light as a feather, highly stable and durable for generations.
Download
Manual sliding caliper (PDF, 5,0 MB)
Electronic sliding caliper (PDF, 1 MB)

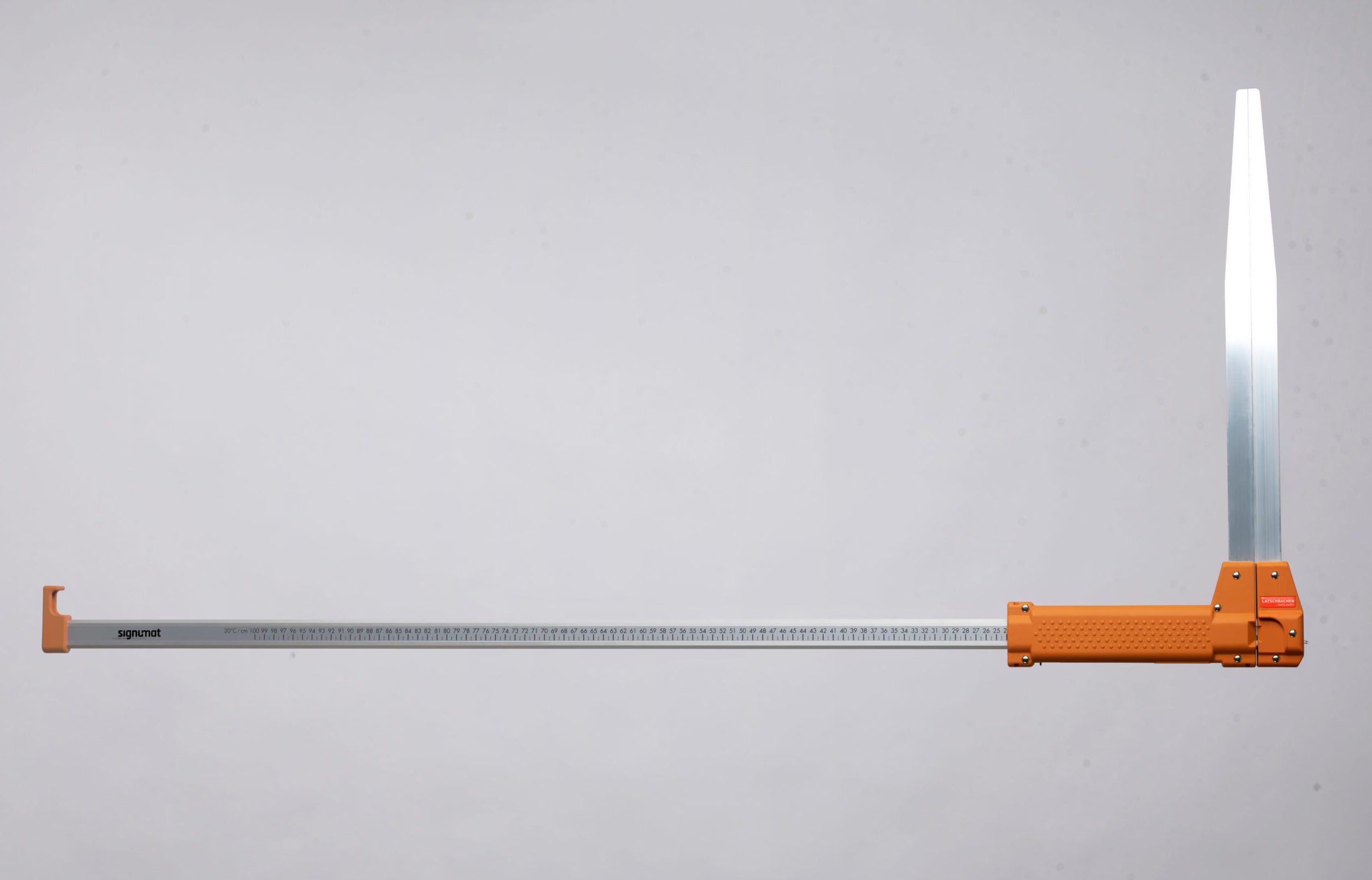

The manual sliding caliper in detail
The manual Signumat Sliding Caliper Mk4 is available in five different versions:
- 60 cm with german measuring tape
- 80 cm with german measuring tape
- 80 cm with swiss measuring tape
- 80 cm with french measuring tape
- 100 cm with german measuring tape
Loading…
-
Precise
Adjustability of the measuring legs
-
Handy
Ergonomically shaped handle scales
-
Resilient
Professional tape measure for permanent and precise measurement results
Full precision control.
The impact-resistant handle with effective nubs is non-slip and
ensures a secure and comfortable grip even in wet and frosty conditions.
german version
swiss version
french version
Keeps all promises. And withstands everything.
The crystal-clear, high-tech film withstands constant pressure.
It permanently withstands the tough mechanical stresses of working in the forest.
german version
swiss version
french version
A distinctive profile
An octagonal profile offers a perfect contract surface for the precise functioning of the slide guide elements.
Low weight and a high torsional rigidity contribute to ease of use.
german version
swiss version
french version

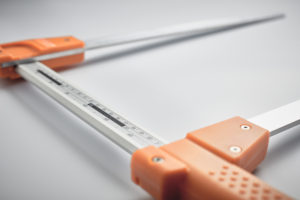

Silky smooth yet firm
Three easy-to-use adjusting screws ensure adjustable sliding elements.
This means that the measuring arms of your caliper are always exactly parallel.
german version
swiss version
french version
Technical Data – german version
| TECHNICAL DATA |
Mk4 / 60cm |
Mk4 / 80cm |
Mk4 / 100cm |
| Length inside (cm) | 0 – 60cm | 0 – 80cm | 0 – 100cm |
| Leg length inside (mm) | 350 | 420 | 520 |
| TOTAL WEIGHT (kg) | 0,88 | 0,94 | 1,08 |
Technical data – swiss version
| TECHNICAL DATA |
Mk4 / 80cm |
| Lenghts inside (cm) | 0 – 80cm |
| Leg lenght inside (mm) | 420 |
| Total weight(kg) | 0,94 |
Technical data – french version
| TECHNICAL DATA |
Mk4 / 80cm |
| Lenghts inside (cm) | 0 – 80cm |
| Leg lenght inside (mm) | 420 |
| Total weight(kg) | 0,94 |
The electronic sliding caliper in detail
The perfect synergy of software and hardware.
The coordinated overall system consisting of our high-quality sliding caliper and the powerful app “Global Log Management“. The recorded measurement data is automatically displayed on our Global Log Management app via Bluetooth. The configuration of the key assignment on the Mk4 sliding caliper is also controlled via the app. Furthermore, the date, time and GPS data of the acquisition is automatically saved. The latter also enables the map display of the measured timber. In addition, log and wood pile photos can also be stored. The output of the data can be done in Excel or PDF including share function.
The Signumat electronic sliding caliper Mk4 is available in 3 different versions:
- with maximum opening length of 55 cm
- with maximum opening length of 75 cm
- with maximum opening length of 95 cm
The operating concept.
Unique operation. Clear input. Simple handling. Most electronic sliding calipers are complicated to operate due to too few keys. We take a completely new approach. The function keys F1 to F9 can be freely assigned for different assortments. With one keystroke the combination of wood type and quality is fixed. A complete numeric keypad facilitates the quick recording of the length. The diameter is determined by the measurement.
Intelligent haptics.
The ergonomic recessed grips as well as the non-slip knobs define the optimal haptics of this Signumat precision tool. The slide-on cover of the charging port ensures that all important components, such as the long-life battery, are optimally secured.
Precise measurement results.
The sliding caliper is available in two sizes. The shorter version allows measurements with a maximum diameter of 75 cm, while the larger version is optimal for log measurements of maximum 95 cm.
“Forestry equipment that is awarded this test mark,
meets the high demands of professional forest work.
This mark is awarded safe, ergonomic, environmentally friendly and economical tools.
In addition, they are prodved to suit for twelve-month practical assignments.”
